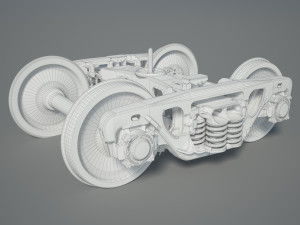

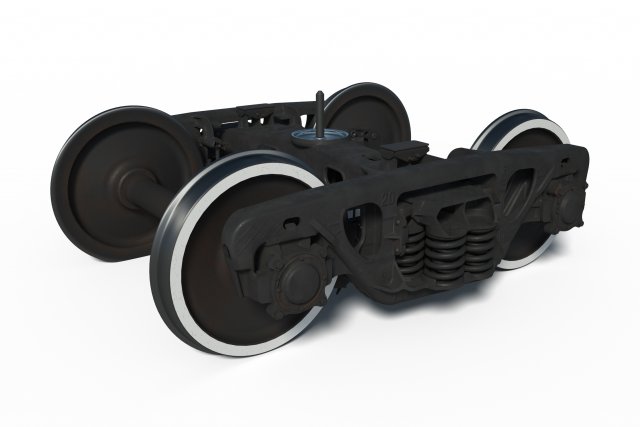

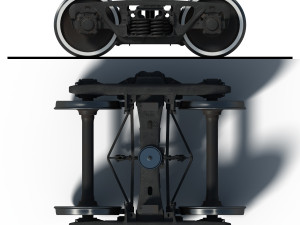

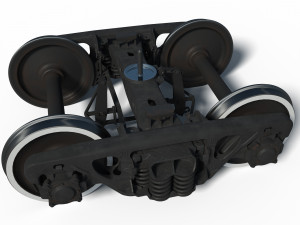

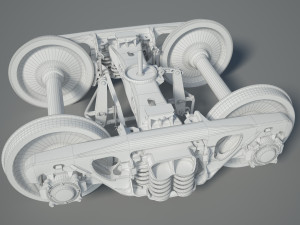

Train Bogie 18-100 Model 3D

This is high-detailed bogie model for railway frieght wagons which is used in Russia.
- Based on original drawings.
- Model units - millimeters.
- Heght to bearing surface - 793,5mm (loaded with wagon tare).
- Railway gauge - 1520mm.
- All objects are solids and converted to polys with fixed triangulation and smoothing groops. Checked with xVew.
- All objects and materials have real names.
- New materials for more realistic "used" look. You can adjust the amount of "dust", "dirt" & "rust" through the mask color correction map or you can disable them if you want "clear" look.
- All objects have unwraped uvs.
- All objects have layers. You can switch off layer "Train_details" for better optimisation (bolts, nuts, splints e.t.c). 126585 Polys when disabled.
- No debris geometry.

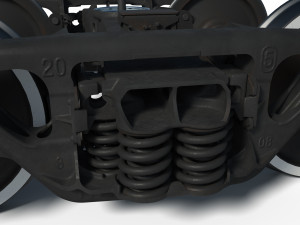

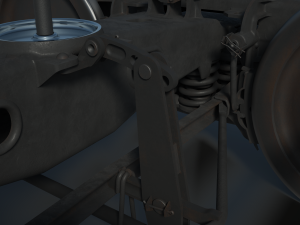

The bogie is upgraded for 23 tons payload per axe. It consists of 2 molded side frames, bolster beam, 2 pairs of wheels and axles, 4 axles-boxes, break system, triangular and pivot.
I'v tried to put maximum details but reduce the total amount of polys.
The model has good optimisation and quality balance. Maps included.
Renders are made in vray 5.10.00. Max version - 2020. Siap Cetak: Tidak
