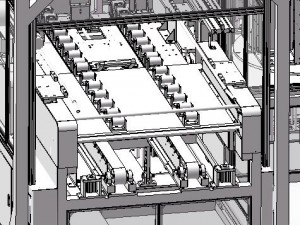

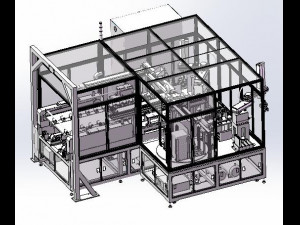

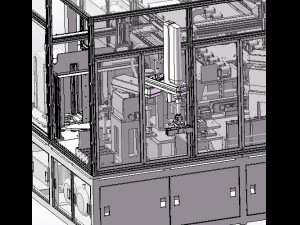

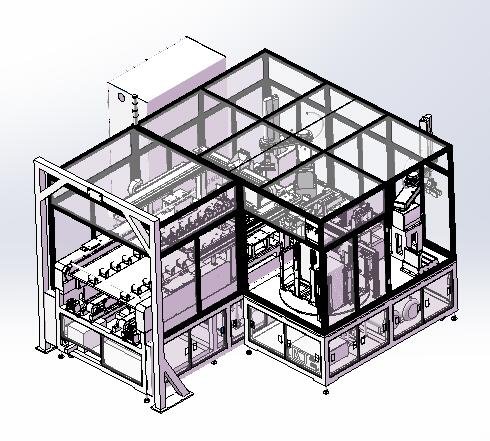

power battery housing machine assembly machine Model 3D

large power battery full-automatic shell machine is an automatic non-standard assembly machine with complex structure, repeated actions, multiple manipulators working together to complete the whole process of power battery shell assembly. all kinds of mechanisms are skillfully used, which is quite valuable for learning and reference. this equipment is a battery automatic assembly into the shell equipment, the equipment is very large, there are many mechanisms, the design is very reasonable, the mechanism is mature and stable, the equipment efficiency is high, using a lot of automatic manipulator to grab products, automatic alignment mechanism, etc., has been mass production of successful equipment, is worth collecting. sw design source files are provided.

software version: solidworks

file format: sldprt / sldasm

large power battery full-automatic shell machine is an automatic non-standard assembly machine with complex structure, repeated actions, multiple manipulators working together to complete the whole process of power battery shell assembly. all kinds of mechanisms are skillfully used, which is quite valuable for learning and reference.

this equipment is a battery automatic assembly into the shell equipment, the equipment is very large, there are many mechanisms, the design is very reasonable, the mechanism is mature and stable, the equipment efficiency is high, using a lot of automatic manipulator to grab products, automatic alignment mechanism, etc., has been mass production of successful equipment, is worth collecting. sw design source files are provided. Siap Cetak: Tidak
