Mold for Tractor tire 43 Scale
Model Cetak 3D

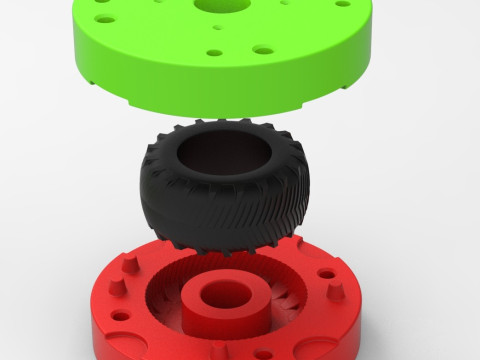

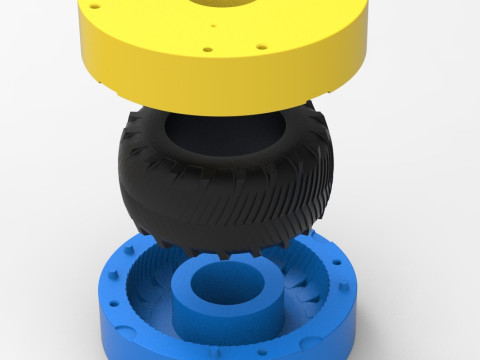

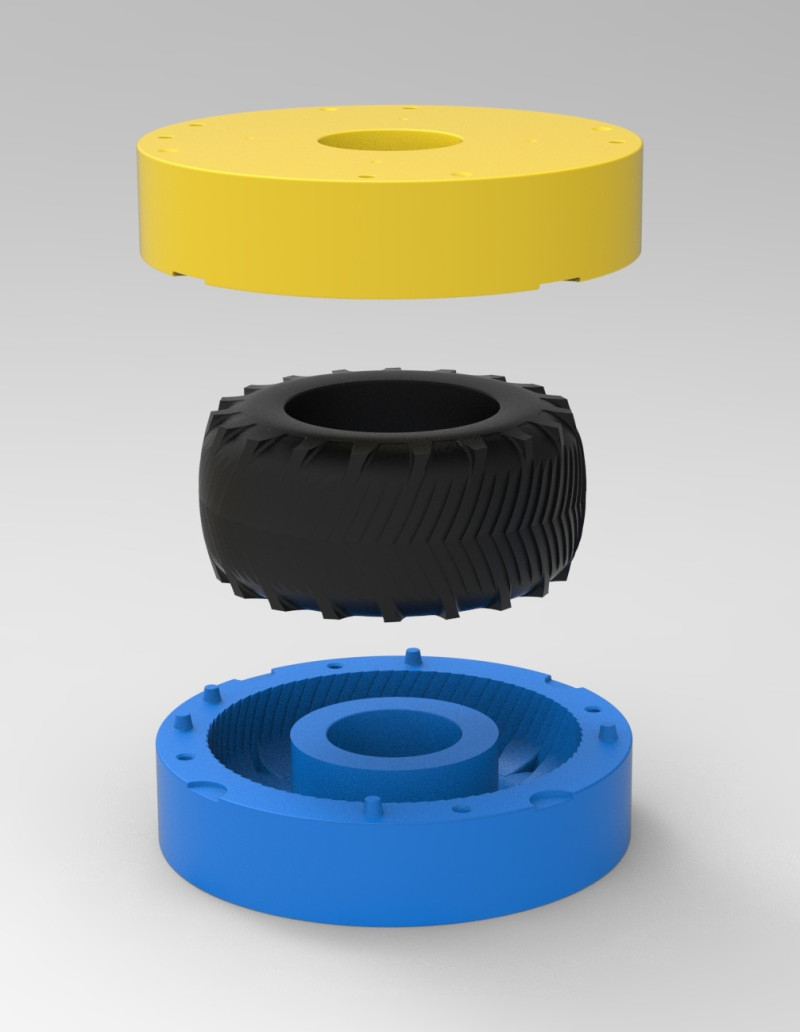

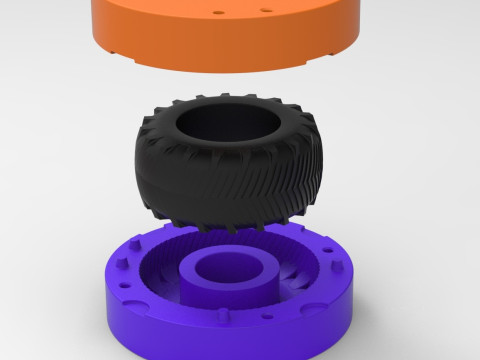

The mold is intended for the tire manufacture from silicone or similar flexible material in scale 1:10, 1:14, 1:25. It consists of 2 parts: top and bottom part. Each part can be 3D printed without supports.

Mold dimensions 1:10:

- diameter – 194 mm

- height – 85 mm

Tire dimensions 1:10:

-        outer diameter – 154 mm

-        overall width – 70 mm

-        inner diameter – 85 mm

Mold dimensions 1:14:

- diameter – 150 mm

- height – 60 mm

Tire dimensions 1:14:

-        outer diameter – 110 mm

-        overall width – 50 mm

-        inner diameter – 61 mm

Mold dimensions 1:25:

- diameter – 102 mm

- height – 38 mm

Tire dimensions 1:25:

-        outer diameter – 62 mm

-        overall width – 28 mm

-        inner diameter – 34 mm

If you want a different wheel size, simply scale the mold.

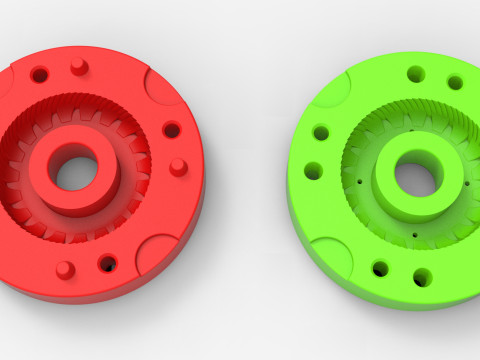

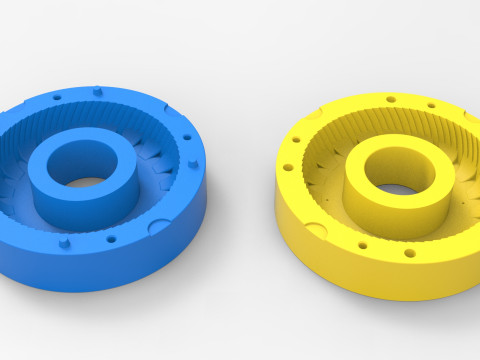

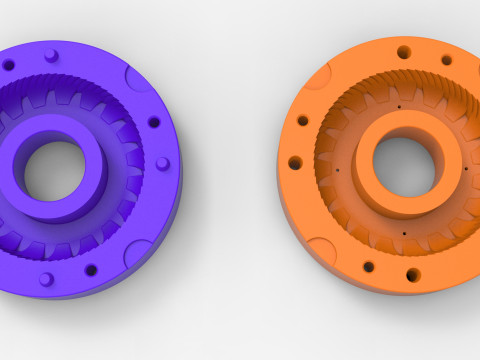

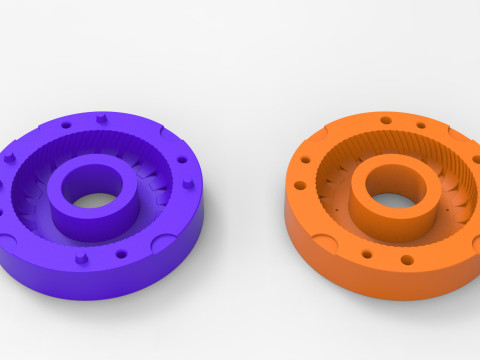

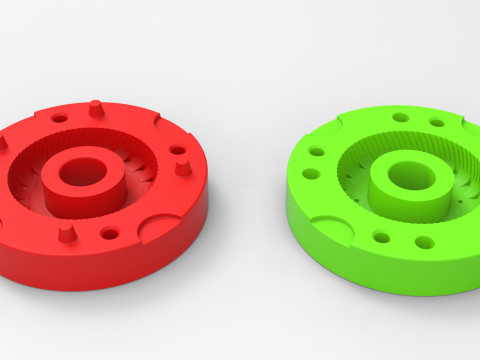

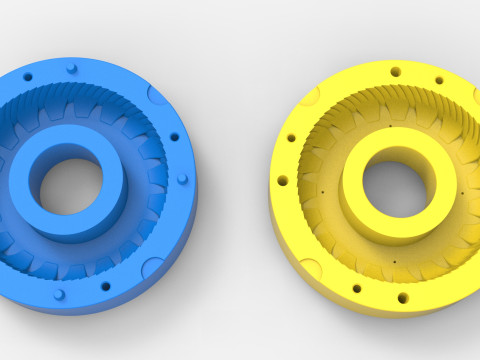

The bottom mold part has 5 special bosses and Top mold part has 5 special holes to guide mold parts in the closed state. Also, there are 4 slots for better opening with a screwdriver or similar instrument.

In the Top mold part are 4 small holes for material injection.

Both mold parts have 4 holes with diameter 6 mm for bolting it in closed state.

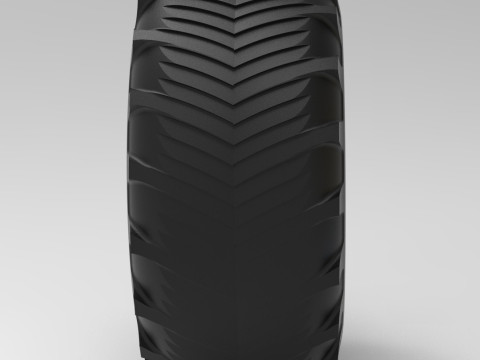

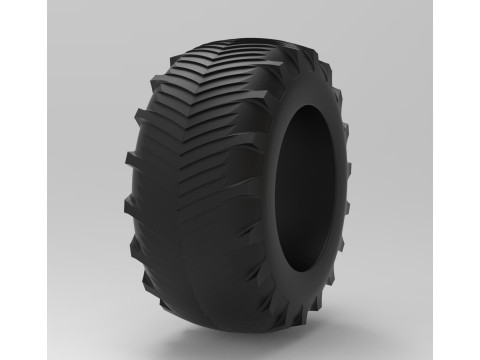

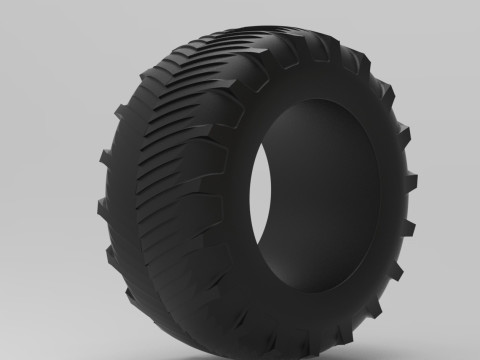

Note! Only the mold! This is not a tire!
